Permeable Paving Range

AQUALOK™

The Aqualok permeable paving system is designed to manage storm water runoff effectively by diverting and storing water within the paving structure. This process allows water to be filtered and cleansed of pollutants and sediments before gradually releasing it into the ground below. The system employs a unique approach with raised nubs on each paver that create spaces when laid, which are then filled with a fine drainage medium. This creates a pathway for water to flow through the pavers, facilitating the drainage process. When combined with the Aquastone paving system, the Aqualok system can lead to visually appealing and functional landscape designs. By utilising both rectangle and cobblestone set pavers, various design elements can be achieved. These design features could range from subtle edging to more elaborate and attention-grabbing patterns, allowing for versatility in creating a unique and attractive outdoor space.

The Aqualok and Aquastone systems are suitable for various outdoor applications such as paths, patios, driveways, and other landscaping projects. The permeable nature of the Aqualok system makes it particularly well-suited for areas where effective storm water management is essential to prevent flooding, erosion, and water pollution. Additionally, the aesthetic possibilities offered by combining these paving systems make them a desirable choice for enhancing the visual appeal of outdoor environments.

COLOUR RANGE
STANDARD COLOURS

Made To-Order Colours*

Made to order Colours and Finishes are available on a minimum order quantity.

Please talk to your local Atlas Account manager for more information.

Important information

Please ensure installation is done correctly by a creditable contractor, if installed incorrectly the permeable system will not create the desired results. For full installation please visit the Atlas Technical Specification section below.

BEST FOR

SPECIFICATIONS

200mm x 100mm x 80m
50 units per m²
480 per pallet
Permeability 5,500mm per hr

NOTE: Colours shown may alter, due to the limitation of the colour printing process of this catalogue.

This product is not subject to a warning or ban under the Building Act 2004 or a description of any warning or ban that has been made in relation to the product.

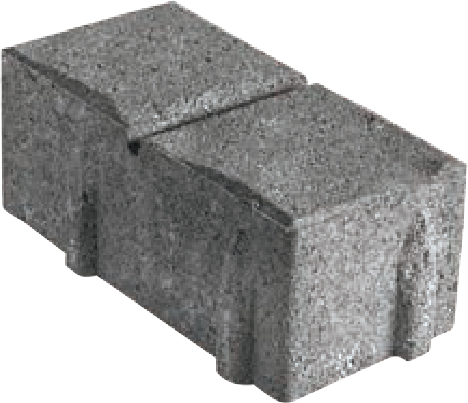

AQUASTONE™

Aquastone permeable pavers are an innovative and aesthetically pleasing solution for various landscaping applications. These pavers offer the appearance of traditional cobblestone set pavers but come in a convenient size of 200mm x 100mm. The unique feature of raised nubs on each side of the paver is particularly interesting, as it allows for wider spacing between the pavers when they are laid down. This spacing creates permeable drainage channels, which can be filled with a fine drainage medium to facilitate water drainage. By combining the Aquastone paving system with the Aqualok paving system, you can achieve diverse and captivating landscape designs. This combination of rectangle and cobblestone sett pavers offers versatility in design, making it possible to create subtle edging or more intricate and attention-grabbing patterns.

The Aqualok and Aquastone systems are suitable for various outdoor applications such as paths, patios, driveways, and other landscaping projects. The permeable nature of the Aqualok system makes it particularly well-suited for areas where effective storm water management is essential to prevent flooding, erosion, and water pollution. Additionally, the aesthetic possibilities offered by combining these paving systems make them a desirable choice for enhancing the visual appeal of outdoor environments.

It’s worth noting that the permeable nature of these pavers can be advantageous for eco-friendly landscaping and for addressing water drainage concerns, which is particularly important in areas where water runoff management is a consideration.

These pavers are suitable for paths, patios, driveways, and other landscaping applications which shows their versatility and potential to enhance various outdoor spaces.

COLOUR RANGE
STANDARD COLOURS

Rocksalt is a mixed blend of Natural and Ironsands.

Made To-Order Colours*

Made to order Colours and Finishes are available on a minimum order quantity.

Please talk to your local Atlas Account manager for more information.

Important information

Please ensure installation is done correctly by a creditable contractor, if installed incorrectly the permeable system will not create the desired results. For full installation please visit the Atlas Technical Specification section below.

BEST FOR

SPECIFICATIONS

200mm x 100mm x 80mm
50 units per m²
480 per pallet
Permeability 5,500mm per hr

NOTE: Colours shown may alter, due to the limitation of the colour printing process of this catalogue.

This product is not subject to a warning or ban under the Building Act 2004 or a description of any warning or ban that has been made in relation to the product.

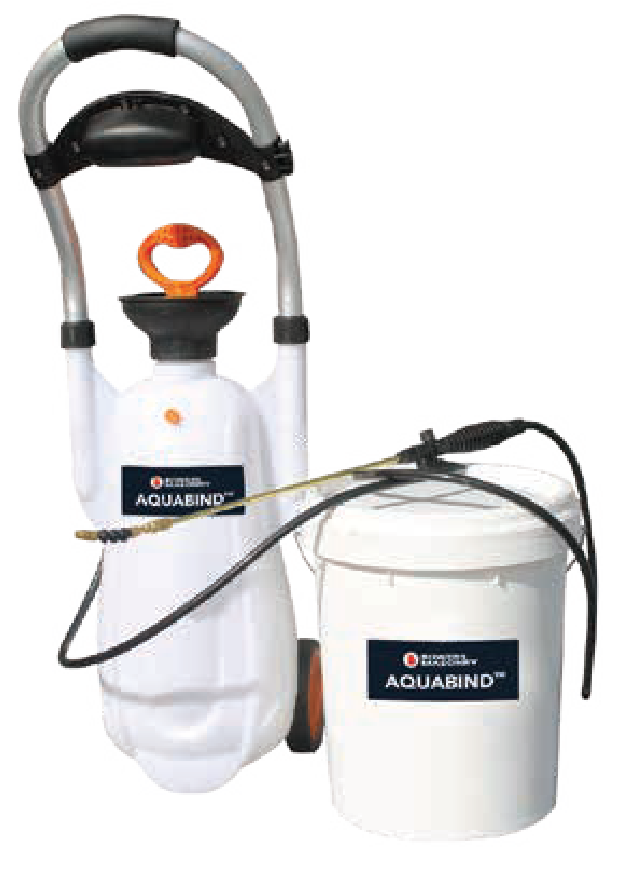

AQUABIND™

Aquabind™, which is a water-based acrylic solution with elastomeric properties designed to be used in conjunction with permeable pavement projects. Aquabind™ is a product designed to provide stability and durability to permeable pavement projects by using its elastomeric properties. It’s mixed with water at a 1:1 ratio and is used to prevent erosion of jointing chips and decorative pebbles, especially in situations where water flow or cleaning methods might pose a risk to the integrity of the pavement.

Aquabind™, which is a water-based acrylic solution with elastomeric properties designed to be used in conjunction with permeable pavement projects. Aquabind™ is a product designed to provide stability and durability to permeable pavement projects by using its elastomeric properties. It’s mixed with water at a 1:1 ratio and is used to prevent erosion of jointing chips and decorative pebbles, especially in situations where water flow or cleaning methods might pose a risk to the integrity of the pavement.

Properties: Aquabind™ is a water-based acrylic solution that possesses elastomeric properties. This means that it has the ability to flex and move with the permeable pavement, adapting to any changes without cracking or breaking.

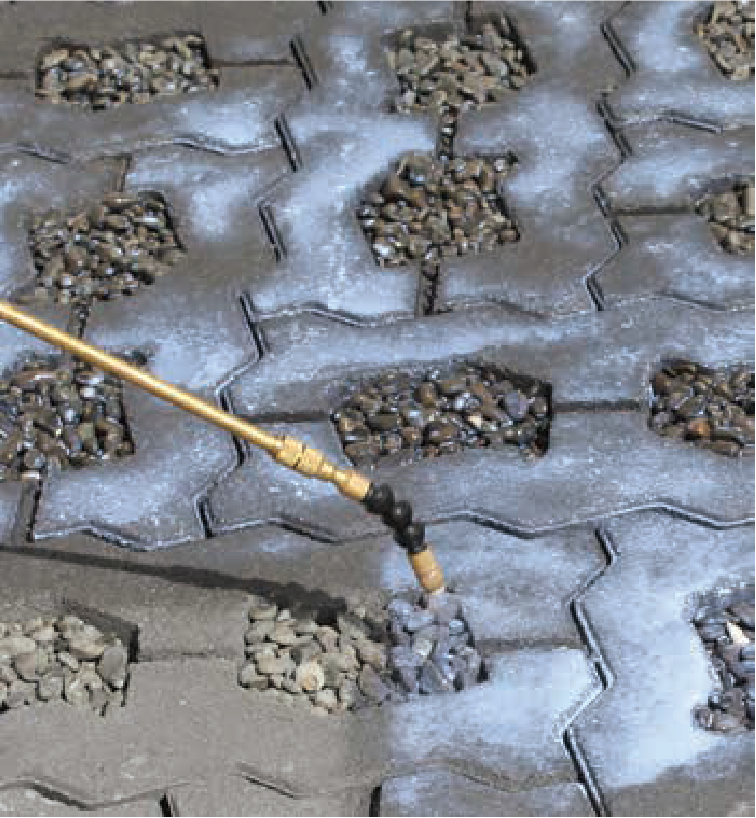

Application: The diluted Aquabind™ solution is applied to jointing chips and decorative pebbles. Its primary purpose is to stabilise these materials, preventing them from being washed out due to factors like steep driveways or cleaning methods involving water blasters or hose pipes.

Coverage: When the diluted Aquabind™ solution is used in a 1:1 ratio with water, one 20-liter pail of Aquabind™ can cover approximately 60 square meters (m2) of paving. This indicates the area that can be effectively treated with the given amount of product.

Concentration: Aquabind™ concentrate is sold in 20-liter pails. When mixed with water at a 1:1 ratio, you get a diluted solution. For example, you would mix 1 liter of Aquabind™ with 1 liter of water.

Complementary Products: Aquabind™ is recommended to be used alongside other products like Aqualok™ and Aquastone™ for stabilising joint chips, and with Grasslok™ when working with decorative pebbles. These complementary products likely enhance the performance of the overall pavement system.

Installation Guide

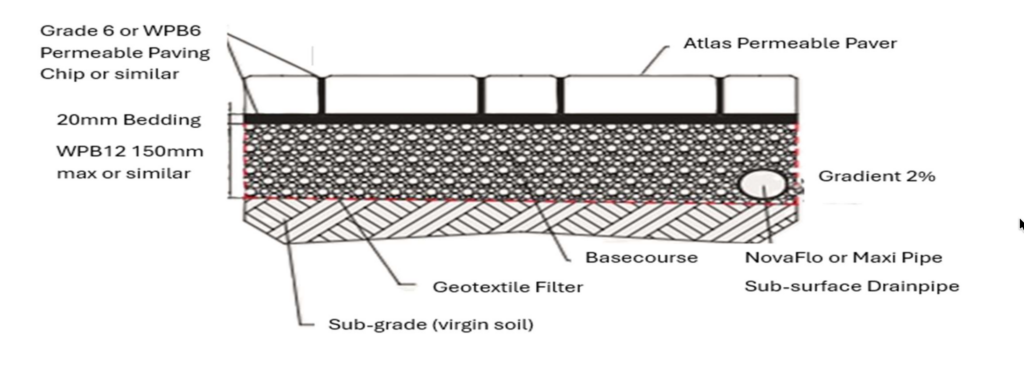

Basic Installation Diagram for Atlas Concrete Permeable Paving range

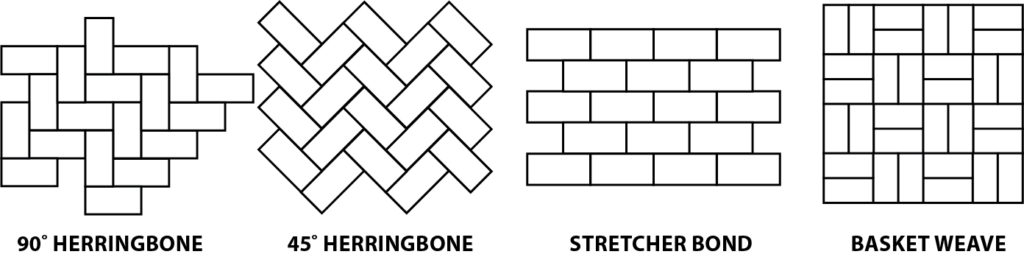

AQUALOK, AQUASTONE & AQUACOURT LAYING PATTERNS

Herringbone 90 and 45 degrees to the direction of the traffic is best suited for vehicular application.

The Atlas Permeable Paving range is engineered for long-term performance, with Aqualok and Aquastone’s permeability rates of 5,500 mm/hr, exceeding the council’s minimum requirement of 120 mm/hr.

This high permeability ensures effective stormwater management over time, even with natural sediment build-up.

To achieve optimal results and maximise system longevity, correct installation and regular maintenance are essential

Note: During compaction the plate compacter needs to have a carpet attached to protect the uneven surface of the Aquastone.

Disclaimer

This document is intended as a general guide for the installation of permeable paving systems. Site-specific conditions such as soil type, drainage, load requirements, and local regulations may significantly influence design and installation practices. It is essential to consult with a qualified engineer or relevant professional to ensure compliance with applicable standards and to determine the most appropriate solution for your specific project.

Contact Us

For more information about permeable paving and how it can benefit your project, please contact your local Atlas Concrete Branch
